Two stage Industrial Compressors

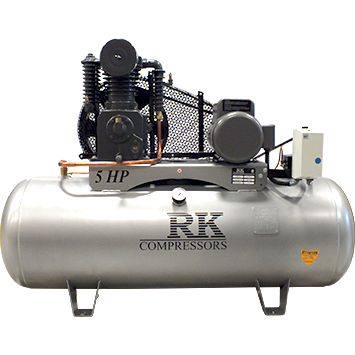

IC-580  / 2 Cyl., 5HP

IC-580

IC-580 compressors are designed for heavy or industrial use. These piston compressors are reliable, heavy duty and durable and require a minimum of maintenance. They are used in a wide range of applications such as vehicle servicing, automotive body repair shops, woodworking shops, machining, production and manufacturing lines and much more.

Features:

  • 2-stage, 2-cylinder cast iron pump - head, cylinders, aftercooler, intercooler and pump body
    • Low RPM for longer life
    • Oil sight glass for rapid level checks
    • Oil drain extension for easy oil changes
    • Tapered roller bearings
    • Five individual concentric disk valves
    • Splash lubricated
  • Magnetic motor starter mounted and wired for all popular voltages
  • 5HP Baldor electric motor equipped with an internal overload protection
  • Certified ASME air receiver tanks
  • Automatic start/stop regulation by pressure switch
  • Voltages available:
    •  230V - 1 phase / 20.6 amp required
    •  208/230/460V - 3 phases / 6.7 amps required with 460V
    •  575V - 3 phases / 5.3 amps required

All units are factory tested, shipped with the proper oil level and READY TO GO!

MODEL PUMP RPM CFM SIZE (in.) GALLON / WEIGHT
ICM-580H ICM-5C 794 17.0 @ 150 psi L=63 W=20 H=44 80 gal/571 lbs
ICM-580V ICM-5C 794 17.0 @ 150 psi L=35 W=24 H=74 80 gal/577 lbs
Spec. Sheet
IPL

ONE YEAR WARRANTY
